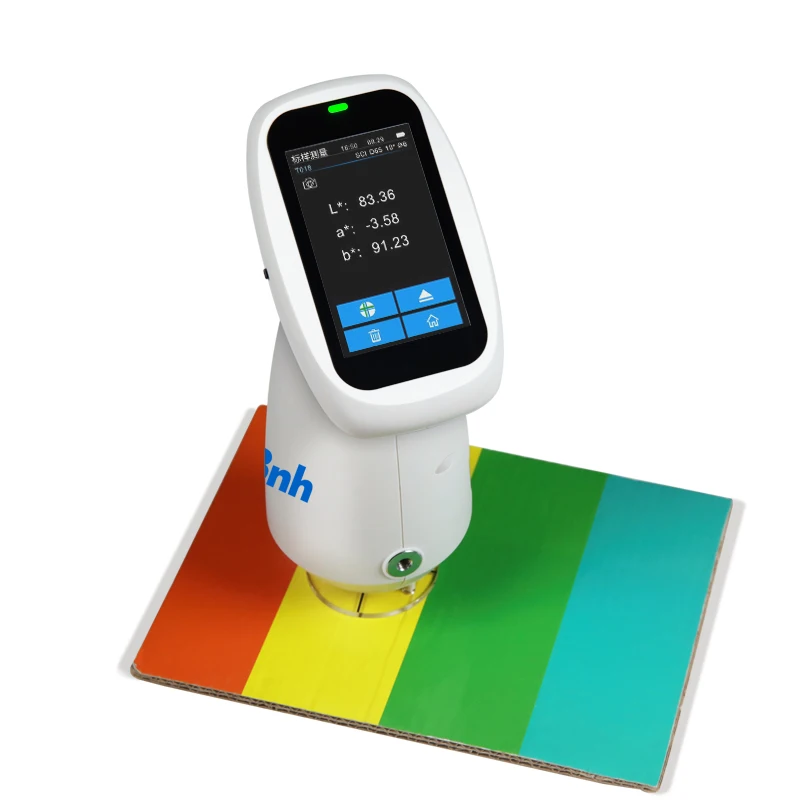

| Model | PS2070 PS2080 spectrocolorimeter |
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply toCIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Characteristic | Adopt CMOS dual beam splitting sensor;Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, also for fluorescence sample measurement. |
| Light Source | Combined full spectrum LED light source, UV light source |
| Integrating Sphere Size | Φ40mm |
| Sensor | CMOS dual beam splitting sensor |
| Wavelength Range | 400-700nm |
| Measuring Aperture | PS2070 Four Apertures:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
| PS2080 Six Apertures:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm;LAV:1x3mm |
| Specular Component | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | Spectral reflectance,WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Mobile APP implementation) |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65 |
| Display | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Measuring Time | About 1s |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.02 (After preheating and correction, the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles) |
| Displayed Accuracy | 0.01 |
| Measured Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |

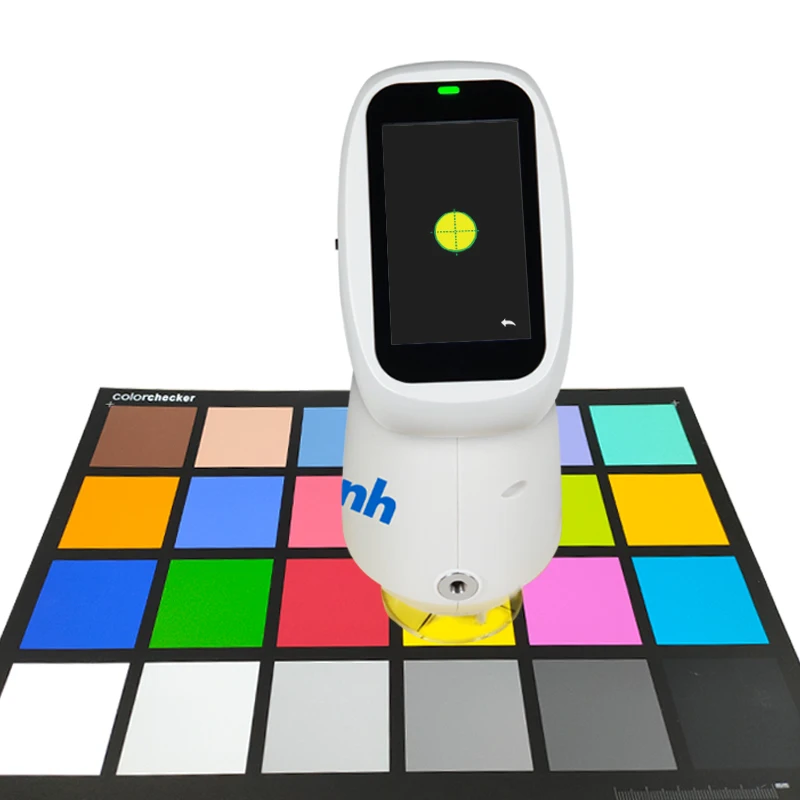

| Locating Method | Stabilizer position+camera locating |
| White Calibration mode | Non-contact automatic calibration |
| Dimension | 94X68X188mm |
| Weight | About 270g |
| Battery | Lithium battery,3.7V,5000mAh,8000 cycles in 8 hours |
| Illuminant Life Span | More than 1.2 million measurements over 10 years |
| Screen | 2.8 inch TFT true color, Capacitive Touch Screen |
| Interface | USB,Bluetooth®5.0 |
| Data Storage | Standard 500 Pcs, Sample 10000 Pcs(One data is able to include SCI/SCE);PC mass storage |

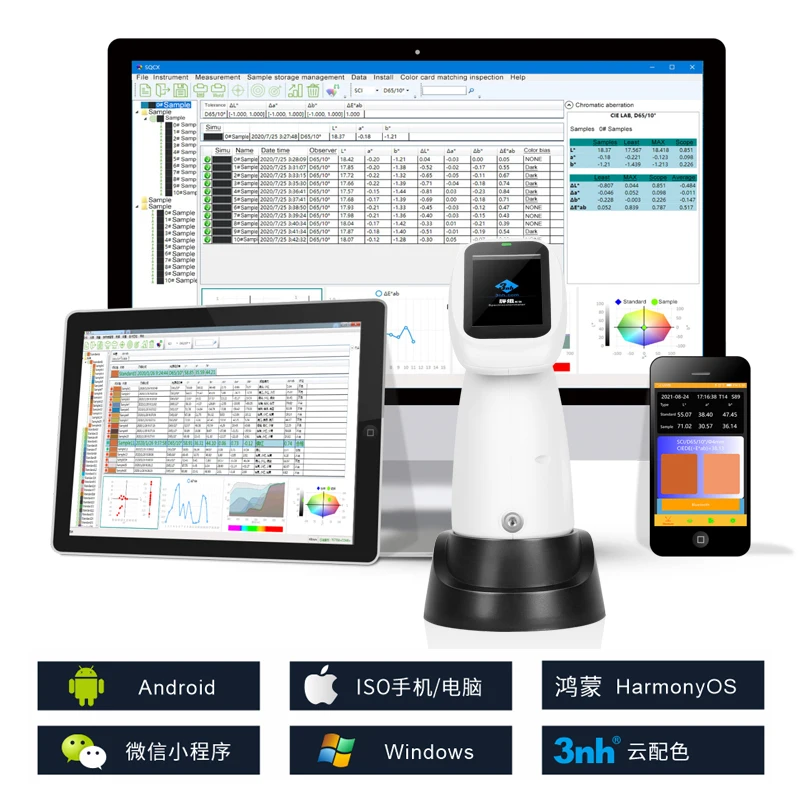

| Software support | Andriod,IOS,Windows,Wechat small program, Hongmeng |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing),Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, Aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
