3nh YS3060 UV color spectrophotometer with 400nm 700nm wavelength for fluorescent sample color difference check
Brief Introduction
Grating Spectrophotometer YS3060 is a new product launched as a flagship model in color measuring instruments by Shenzhen 3nh Technology Co., Ltd. YS3060 spectrophotometer can match with the similar models of the world famous brands no matter in functions or in precision, such as American Xrite brand models spectrophotometer Ci60, Ci62, Ci64, Ci64UV, and Japan Minolta models spectrophotometer CM-2300d, CM-2600d, CM-600d and CM-700d etc.
Features
1. Spectrophotometer YS3060 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS3060 features the precise measurement and the complete functions.
3. It is configured with two measuring apertures, 8mm and 4mm. The 4mm aperture is for the color measurement of small targets.
4. Configured with UV light source, YS3060 can be used to measure the color of the targets with fluorescent material.
5. The PC terminal software SQCX provides powerful data management functions.
6. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
7. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.

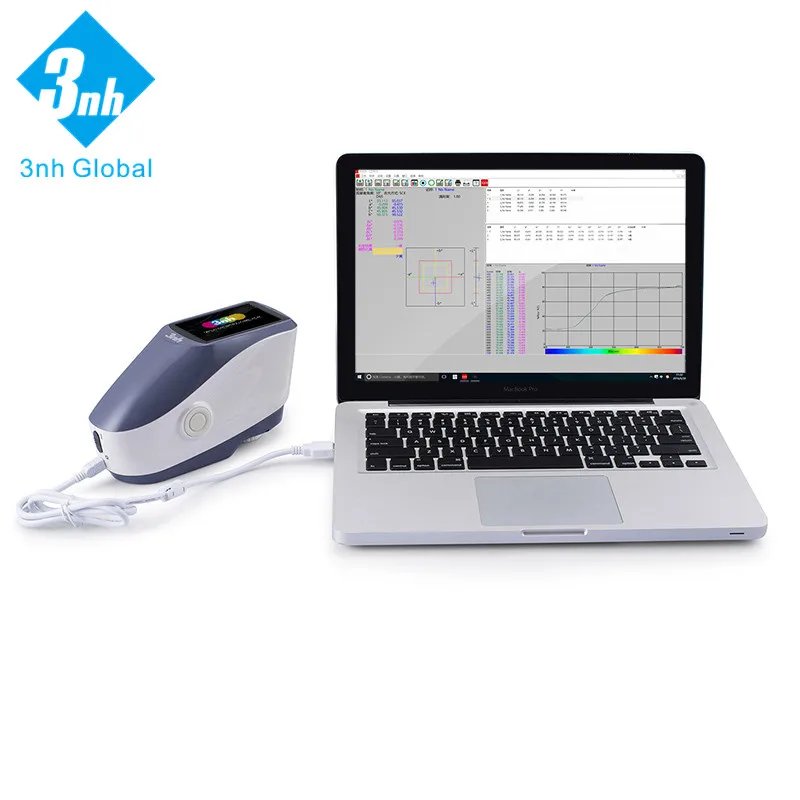

8. YS3060 can be connected to a computer via USB cable or Bluetooth to do data management.
9. A built-in camera to help to aim the targets to be measured.
Specification Parameter
| Parameters | Spectrophotometer YS3060 |
| Optical Geometry | d/8° (di:/8°, de:8°) |
| Measuring Aperture | Φ8mm & Φ4mm |
| SCI/SCE | SCI & SCE (SPIN & SPEX) |
| Integrating Sphere Size | Φ48mm |
| UV Light Source | Yes |
| Light Source | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7,
F8, F9, F10, F11, F12 |
| Light Source Device | Combined LED Lamp & UV Lamp |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Spectral Device | Concave Grating |
| Observer Angle | 2° & 10° |
| Repeatibility | ΔE*≤0.03 |
| Inter-instrument Agreement | ΔE*≤0.15 |
| Spectral Range | 400~700nm |
| Spectral Interval | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1),
ΔE*00v, ΔE(Hunter) |
| Displayed Data | Spectrogram/Values, Chromaticity Values,
Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength,
Opacity |
| PC Terminal Software | SQCX |
| Data Storage Capacity | Standard: 1000 Pcs; Sample: 28000 Pcs.
(One Pcs data can include both SCI and SCE) |
| Data Port | USB & Bluetooth |
| Locating Method | Camera Locating |
| Measuring Mode | Single Measurement & Average Measurement |
| Screen | 3.5" LCD Touch Screen |
| Battery | Built-in Li-ion Battery. 5000 Measurements within 8 Hours. |
| Size | 184×77×105mm |
| Weight | 600g |
| Language | English & Chinese & Spanish |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | White and Black Calibration Board, 4mm Aperture, Power Adapter,
USB Cable, Built-in Li-ion Battery, User Guide, PC Software, Dust Cap |
| Optional Accessory | Micro-printer, Powder Test Box, Universal Test Component |
Application
YS3060 spectrophotometer is color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the color of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
FAQ
1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
Our Services
1.24 hours online to ensure quick response to customers' inquiry or online message;
2. Help customers to choose the best suitable machine model;
3. We support OEM and ODM service and 12 months warranty from the purchase date.
Company Information
3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
